Accuracy
0.18 MOA
Sub-MOA tracking without laser limitations
Marksman ST3
Professional shooting simulator
0.18 MOA precision, 1 ms latency, 235 calibers, and 4,700+ bullet profiles.
Ballistic engine
4,700+ profiles
235 calibers with realistic impact modelling
Latency
1 ms
Near-instant feedback from trigger to response
System configurations
Three core layouts, one optional extension
Three ways ST3 fills a room — from a wide flat wall to an angled driven surface. Check your dimensions below once you know which layout fits your training.

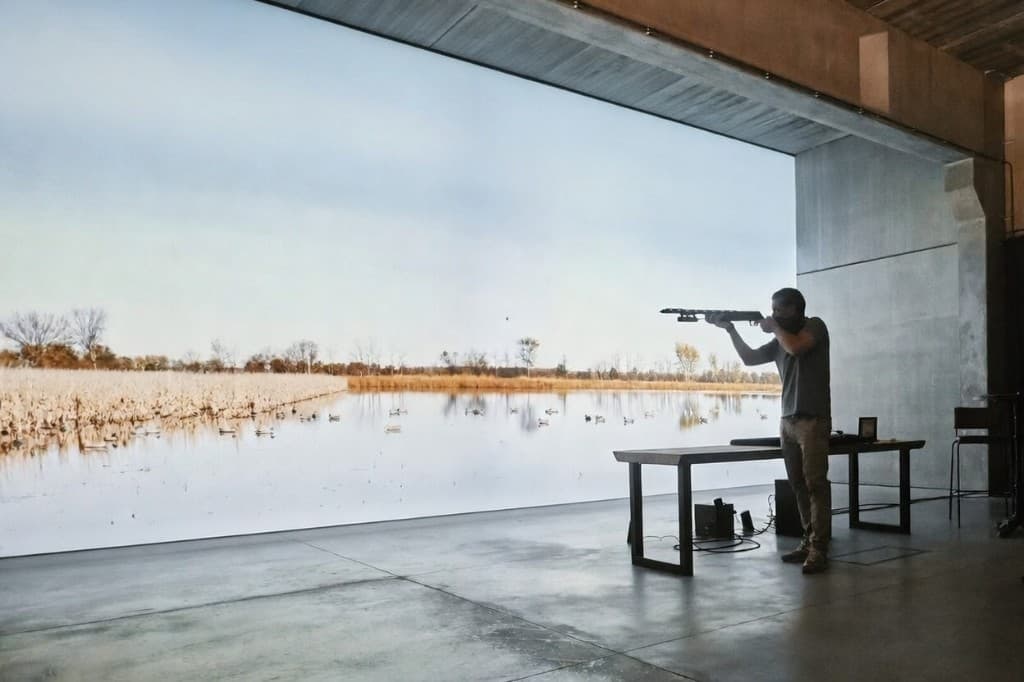

Fit-to-measure
Very large flat image — floor to ceiling

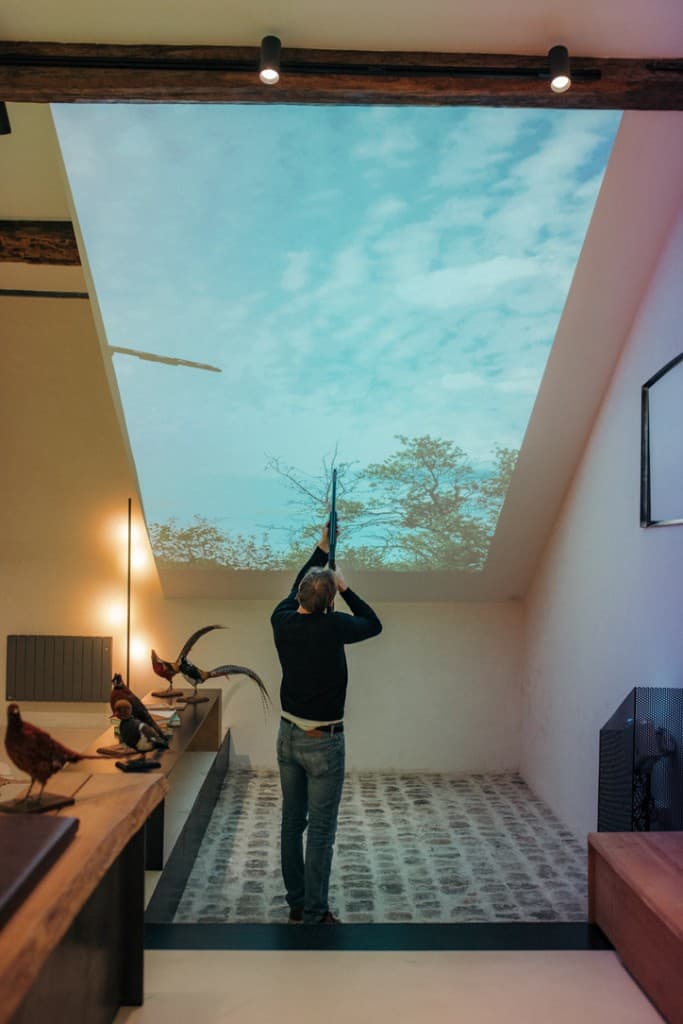

Driven extension
Angled surface for overhead targets

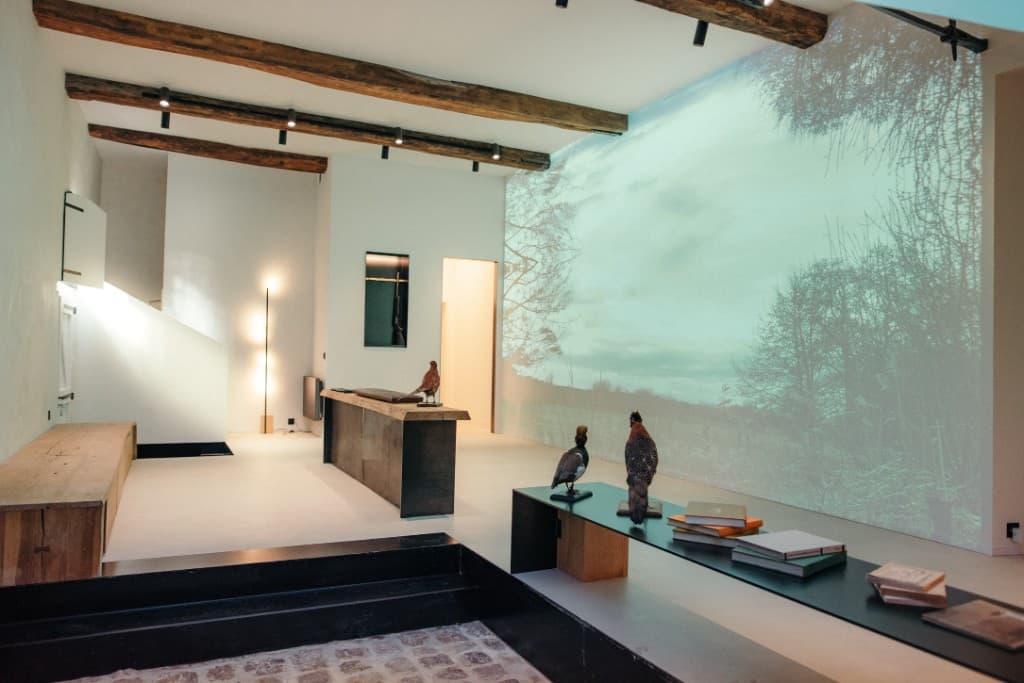

Standard 16:9
Wide flat wall in a typical training lounge
Core simulator
Flat screen — hunting, sporting, defense & law enforcement
Fit-to-measure, Standard 16:9, and Standard 16:9+ share the same ST3 stack. Every flat-screen layout is suitable for mobile use — pack the sensor kit and projector for multi-site or transportable training.
Custom geometry
Fit-to-measure
Lens shift and variable throw adapt the image to your room — up to 40 m² when Standard 16:9 runs out of headroom.
- Image width
- 3.5–8 m
- Image area
- Up to 40 m²
- Lumens
- 6,000 ANSI
- Optimal width
- 5.5–6 m
- Epson short-throw with ±50% vertical lens shift
- 16:10 WUXGA with aspect tuning
- 5.5–6 m wide is the sweet spot for immersion and pixel density
Best for: Very large rooms — scales beyond the 5 m Standard 16:9 cap, up to 40 m² image area.
Wide classic
Standard 16:9
Fixed short-throw 16:9 projection for dependable hunting and sporting training in typical rooms.
- Image width
- 3.5–5 m
- Lumens
- 4,000 ANSI
- Native offset
- 116%
- Floor-centered shooter layout
- Minimum space footprint
- Keeps pixel density sharp up to 5 m wide
Best for: Standard training rooms from 3.5 m image width with comfortable ceiling height.
Wide bright
Standard 16:9+
More flexible than Standard 16:9 — especially in lower-ceiling rooms, thanks to a lower native offset and brighter output.
- Image width
- 3.5–5 m
- Lumens
- 5,000 ANSI
- Native offset
- 105%
- Lower 105% offset eases fit under lower ceilings
- More lumen headroom than Standard 16:9
- Same 3.5–5 m image width range
Best for: Rooms with limited ceiling height that still need a wide, bright 16:9 image.
Optional add-on
Driven birds extension
Driven and Driven+ extend an ST3 you already have or are planning. Configure your base flat-screen system first, then add driven when the ceiling is at least 4 m.
Requires an ST3 base system — not sold standalone
ST3 extension
Driven
Adds overhead driven-bird geometry to an existing ST3 flat-screen install — not a standalone simulator.
- Requires
- ST3 base system
- Minimum ceiling
- 400 cm
- Image height
- 400–500 cm
- Lumens
- 3,500 ANSI
- Native offset
- 109%
- Overhead clay extension on top of your ST3
- 400–500 cm projected image height
- Requires 4 m ceiling minimum
Best for: Sites that already run ST3 and want a dedicated driven-bird lane.
ST3 extension
Driven+
Premium driven add-on with deeper contrast and portrait projection geometry — extends ST3, does not replace it.
- Requires
- ST3 base system
- Minimum ceiling
- 400 cm
- Image height
- 400–500 cm
- Lumens
- 4,000 ANSI
- Native offset
- 102.5%
- Upgrade path from Driven on an existing ST3
- Portrait projection geometry for overhead targets
- Requires 4 m ceiling minimum
Best for: Premium extensions where driven presentation depth matters.
Included hardware
Shipped ready to train
Marksman integrates and supplies the full ST3 stack — compute, tracking, shot detection, and projector configuration. You provide the room and projection surface.
Powerful mini PC
Runs ControlHub and the simulator with headroom for large projections and multi-discipline sessions.
Tracker and receiver
Mounts on rifles, shotguns, and handguns. Delivers 0.18 MOA precision with 1 ms shot-to-screen latency.
Shot detector
Clips to the trigger guard. Registers each shot with near-zero delay so ballistics and scoring stay in sync.
Adjustable replica gun
Use when a real weapon is not available. Adjustable stock for fit checks and dry training.
Voice-controlled puller
Release clay targets on your own call. Keeps reaction time honest for sporting disciplines.
Professional projector
Specified per ST3 configuration — throw, lens shift, and brightness matched to your room layout.
Cabling and accessories
Sound system, power distribution, cable management, and laser pointer for setup.
Options
Add optics, transport, or spare training guns when your installation needs them.
Quick-release optics
Aimpoint or Zeiss mounts with parallax-compensation lens for scope training.
Projection screen
Professional screen when a painted wall is not an option — see projection surface notes below.
Transport case
Pack the sensor kit, shot detector, and accessories for mobile or multi-site use.
Extra replica gun
Second adjustable dummy gun for schools and clubs running back-to-back sessions.
Room check
Will it fit?
Enter your ceiling height and wall width for a quick fit read. For printable drawings, lens positions, and PDF export, request the advanced room tool by email.
Need printable drawings? Request the advanced room tool below.
Side elevation
280 cm
220 cm400 cm
500 cm
300 cm800 cm
Configuration fit
Advanced planner
Get the advanced room tool
We email you the full ST3 room planner with detailed geometry, mount options, and print-ready PDF output.
- Printable room drawings with mount positions
- Full configuration comparison for your dimensions
- Driven geometry with lower-screen tuning
Projection surface
Screen not included in our hardware
Marksman supplies the simulator — tracking, software, and projector configuration. The surface you project onto is yours to specify and install. For professional projection screens in Europe, we recommend AV Stumpfl. A white matte-painted flat wall is a proven, cost-effective alternative.
Plan your ST3 installation
Share your room dimensions and training goals. We confirm configuration, projector layout, and next steps with you.
